Registration number 606
Status Registered
a12admin

Details

Function Cargo Vessel
Location Madeley
Vessel type Severn Trow
Current use Museum based
Available to hire No
Available for excursions No

Construction

Builder Hurd, William, Chepstow
Built in 1894
Hull material Wood
Rig Gaff Cutter
Number of decks 1
Number of masts 1
Propulsion Sail
Boiler type None
Boilermaker None

Dimensions

Breadth: Beam
18.25 feet (5.57m)
Depth
4.50 feet (1.37m)
Length: Overall
71.50 feet (21.81m)
Tonnage: Gross
56.00

History

The only surviving complete Severn trow, SPRY was built by William Hurd, Chepstow, in 1894 to trade in the Bristol Channel, and was registered at Gloucester on 25 October of that year. Her first owner was William Davis, a Chepstow stone merchant and she usually carried limestone from riverside quarries near Chepstow down to Cardiff. Information about SPRY's cargo and journeys can be found in her official logs of 1894-1912, stored at Gloucestershire Archives. The accounts show that she made 12 voyages between Chepstow and Cardiff in her first two months after being registered in 1894. Records from 1896 reveal that a journey from Chepstow to Newport could take SPRY as litle as two days, while sailing upriver from Newport back to Chepstow could take around 12 days.

In the years before First World War, SPRY carried sand along the Bristol Channel for a glass bottle factory. It is said that the master, Thomas Aldridge, was asked to captain SPRY to transport goods to France during the war. However, by this time, SPRY was in a very poor condition and was not fi for the role.

She is believed to have shared loads with BESSIE ELLEN (q.v.) in and around the Bristol Channel and west coast.

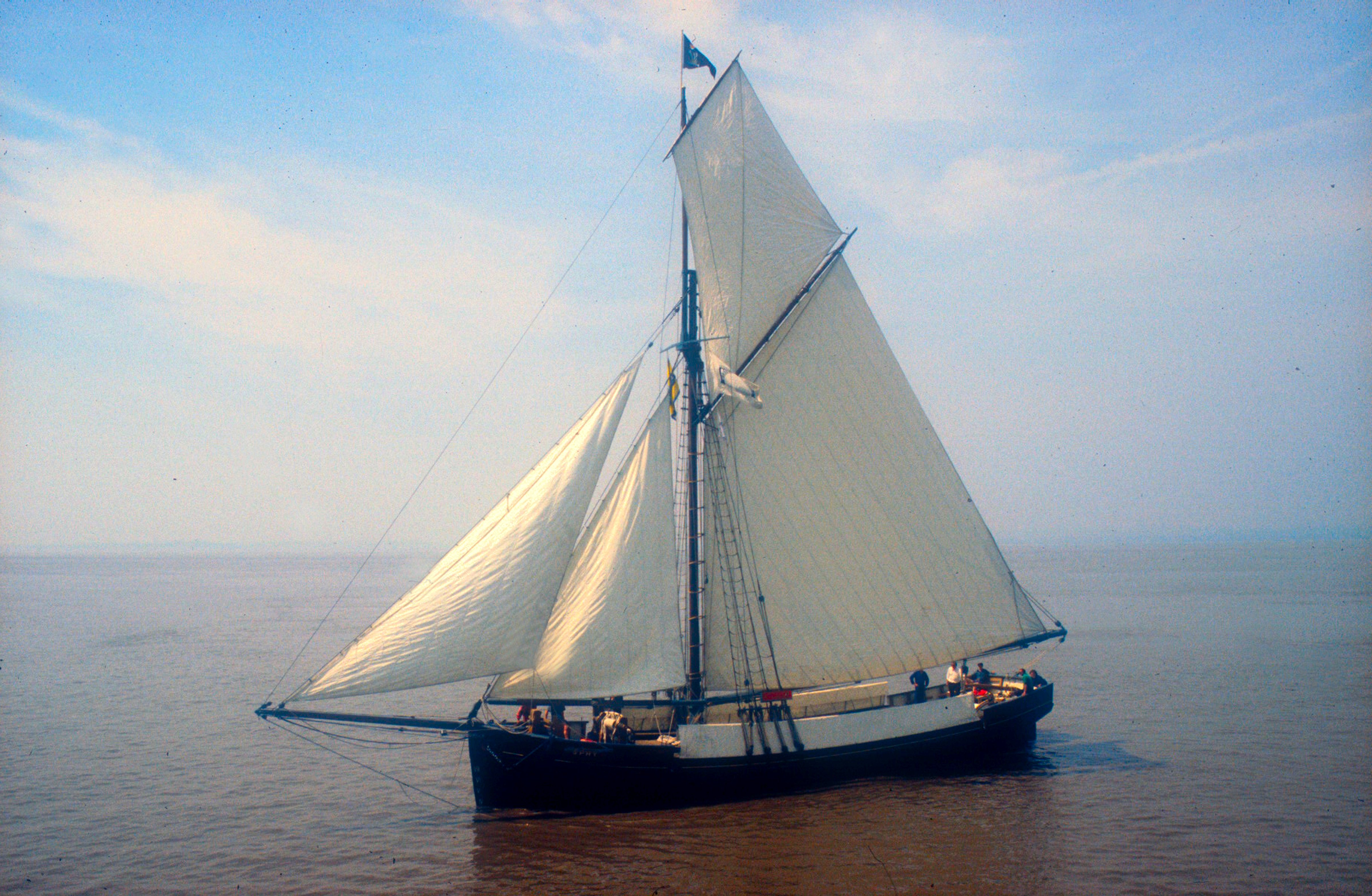

She was originally sloop rigged, with a jib, staysail, topsail and gaff main and this rig has now been restored. Her mast was almost certainly fixed because, unlike many Severn trows, she did not trade up river, which would have necessitated lowering the mast for bridges. In 1913 she was altered to a ketch rig, with a small mizzen mast, and probably at the same time her tiller steering was replaced by a wheel. In 1920 her hull was deepened. In about 1936 she was converted into a dumb barge and during the 1950s and 1960s she was used in the docks at Diglis basin, Worcester, where she later became derelict until acquired by the Upper Severn Navigation Trust in 1983 in partnership with the Severn Trow Preservation Society and the Ironbridge Gorge Museum Trust.

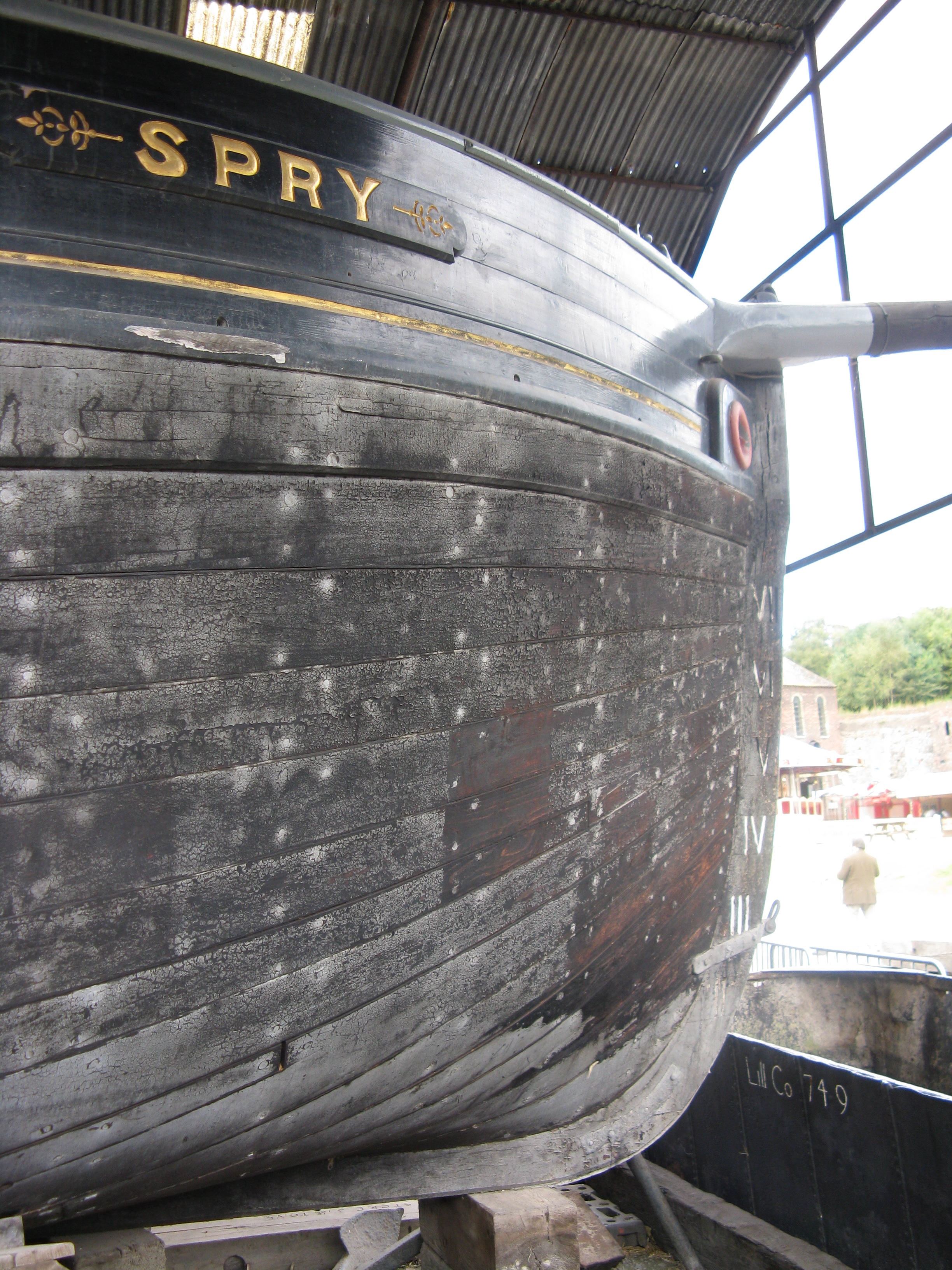

She was moved on a road trailer on 26 March 1983, from Diglis basin to Ironbridge Gorge, Shropshire, where she was completely rebuilt at Blists Hill. With the hull jacked up into shape (to correct the sagging) and supported in cradles, the inner planks were removed; then the old frames were removed and replaced two at a time, whilst the old outer planking acted as a mould - to which the new frames were temporarily fastened. Then the two top outer and inner planks were replaced, and the vessel was suspended from the top planks (whilst still sitting on the keel) before the bilge stringers, planking and strakes, and the bilge keels, could be replaced; the original keel was pulled out and replaced, and then the rest of the hull was planked up. Her new frames are double sawn oak, the carvel planking is larch, and the decks and spars are of Douglas fir.

It took 3 years to acquire enough wood to rebuild SPRY. 83 trees were donated from generous benefactors around Shropshire and the Staffordshire border. The trees used in the reconstruction were:

  • 28 Oaks
  • 41 Larch
  • 13 Douglas Firs
  • 1 Ceder of Lebanon

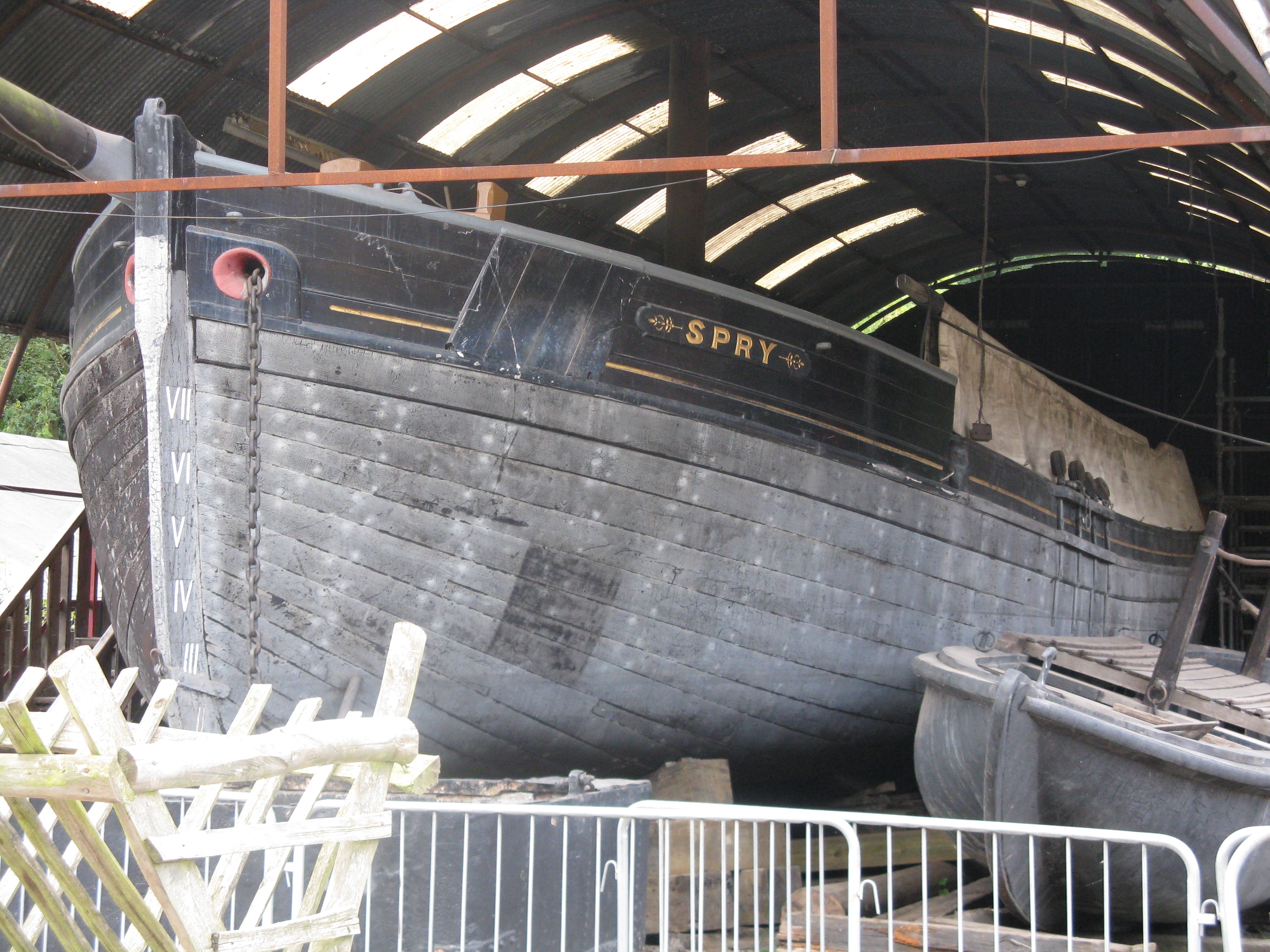

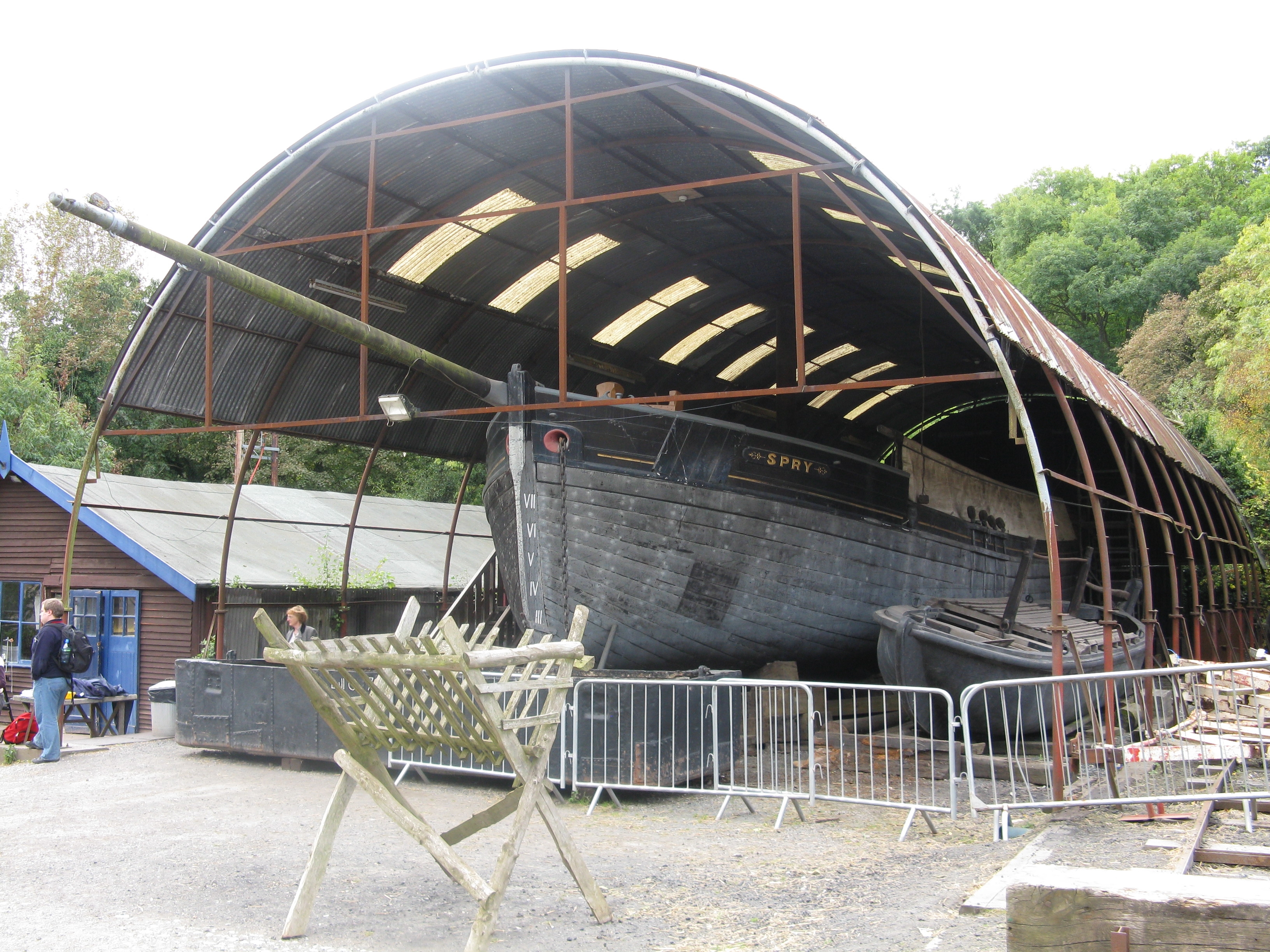

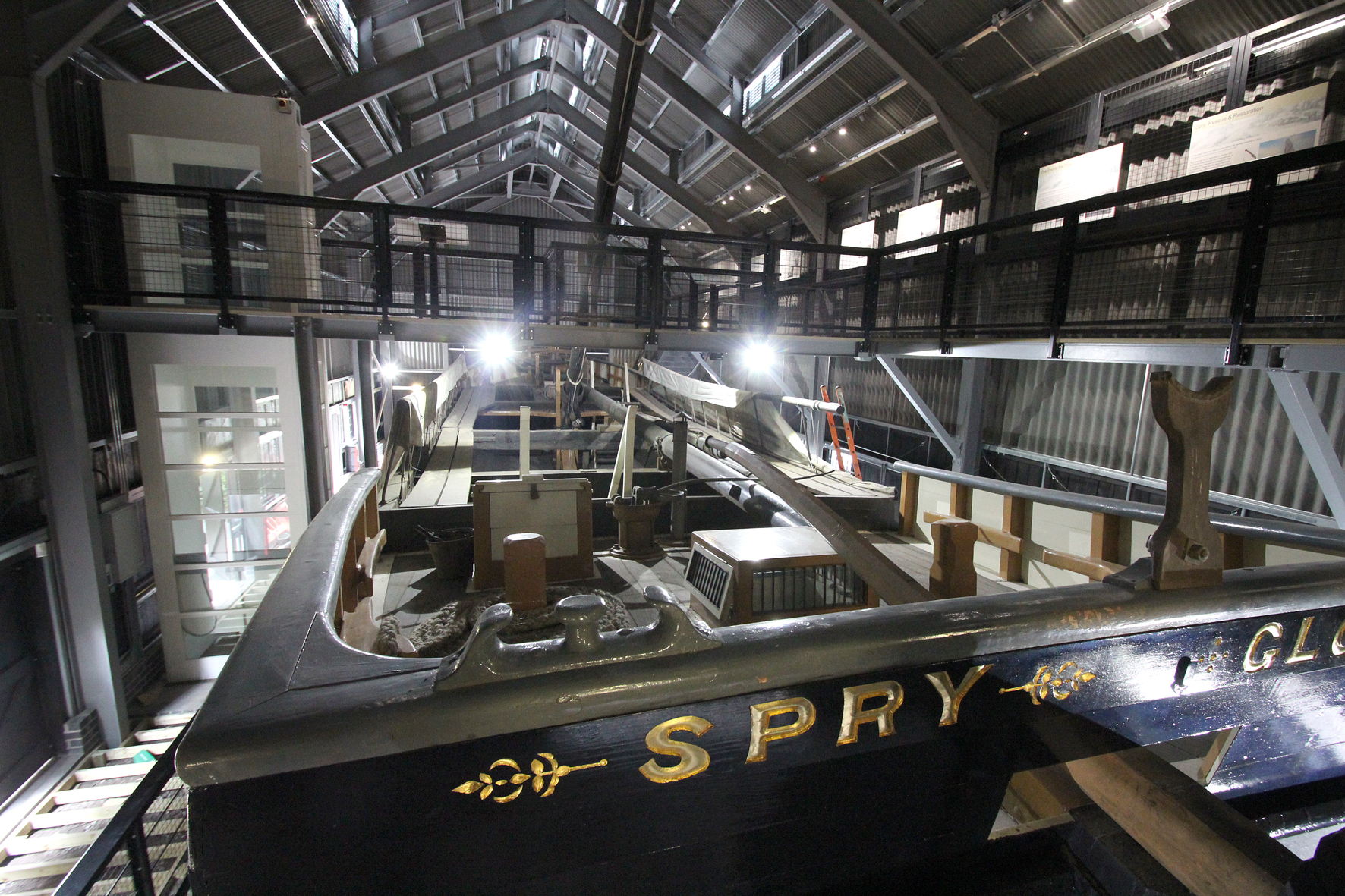

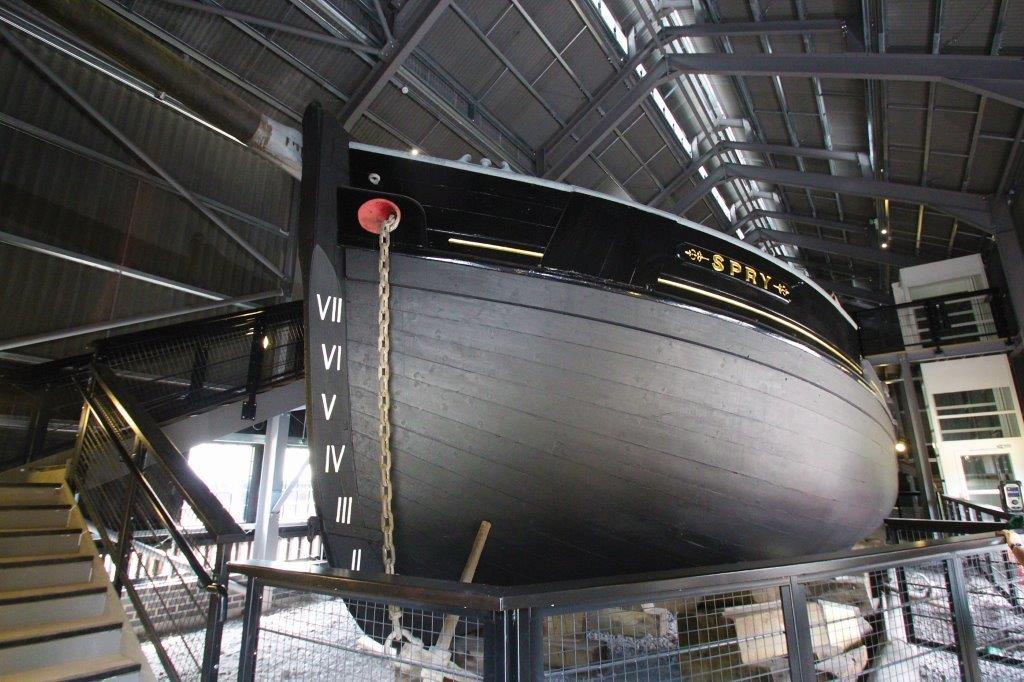

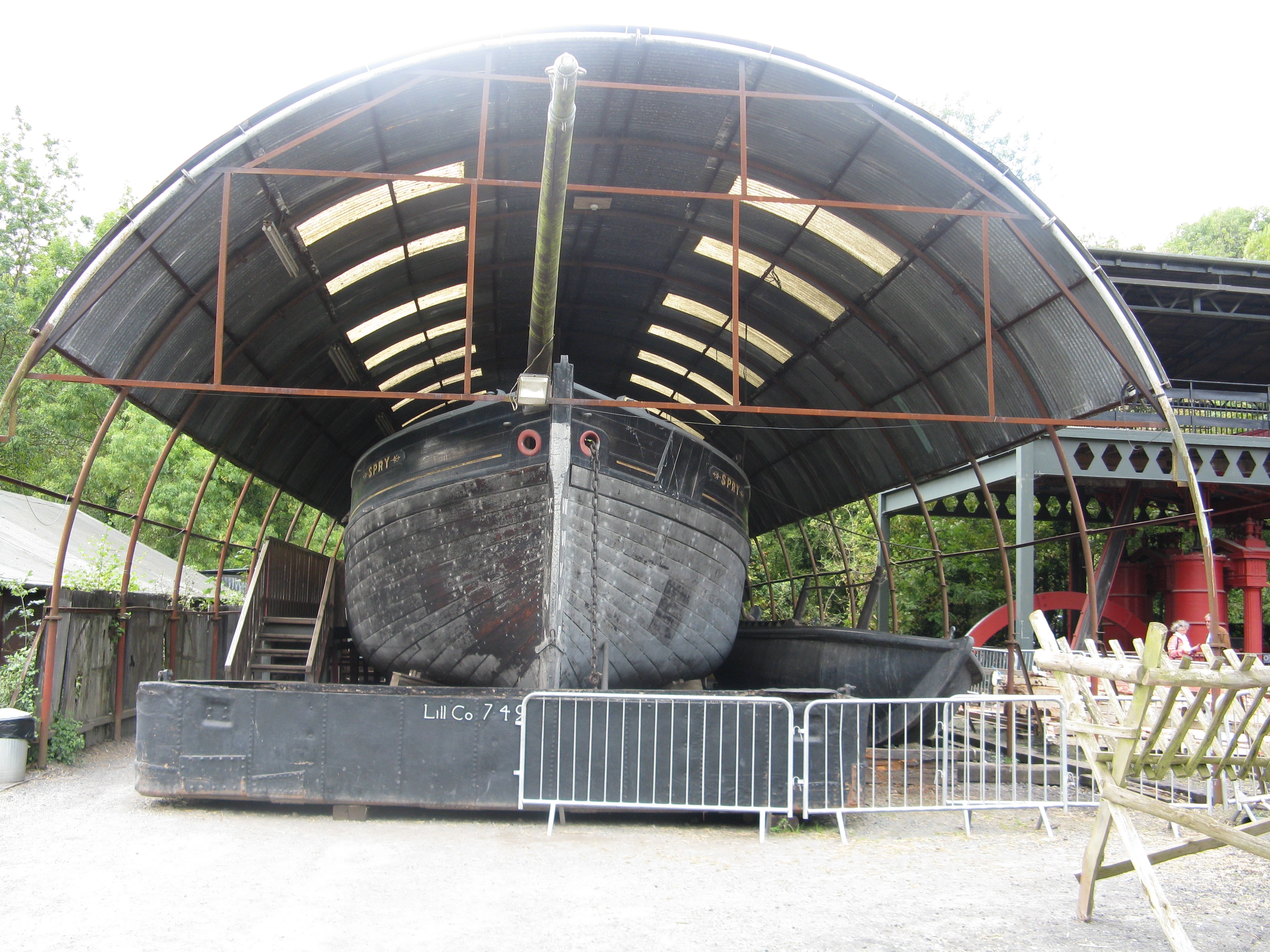

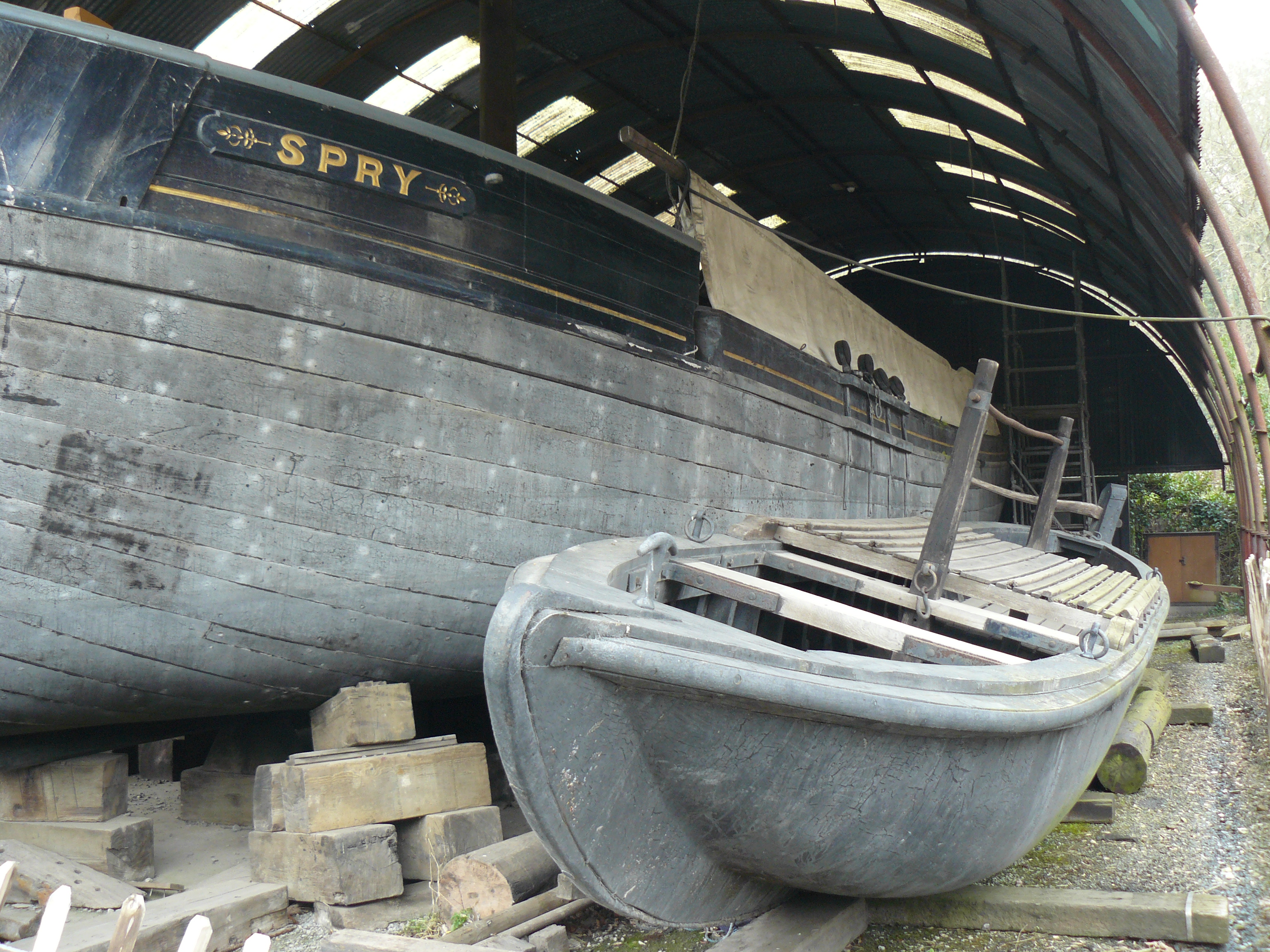

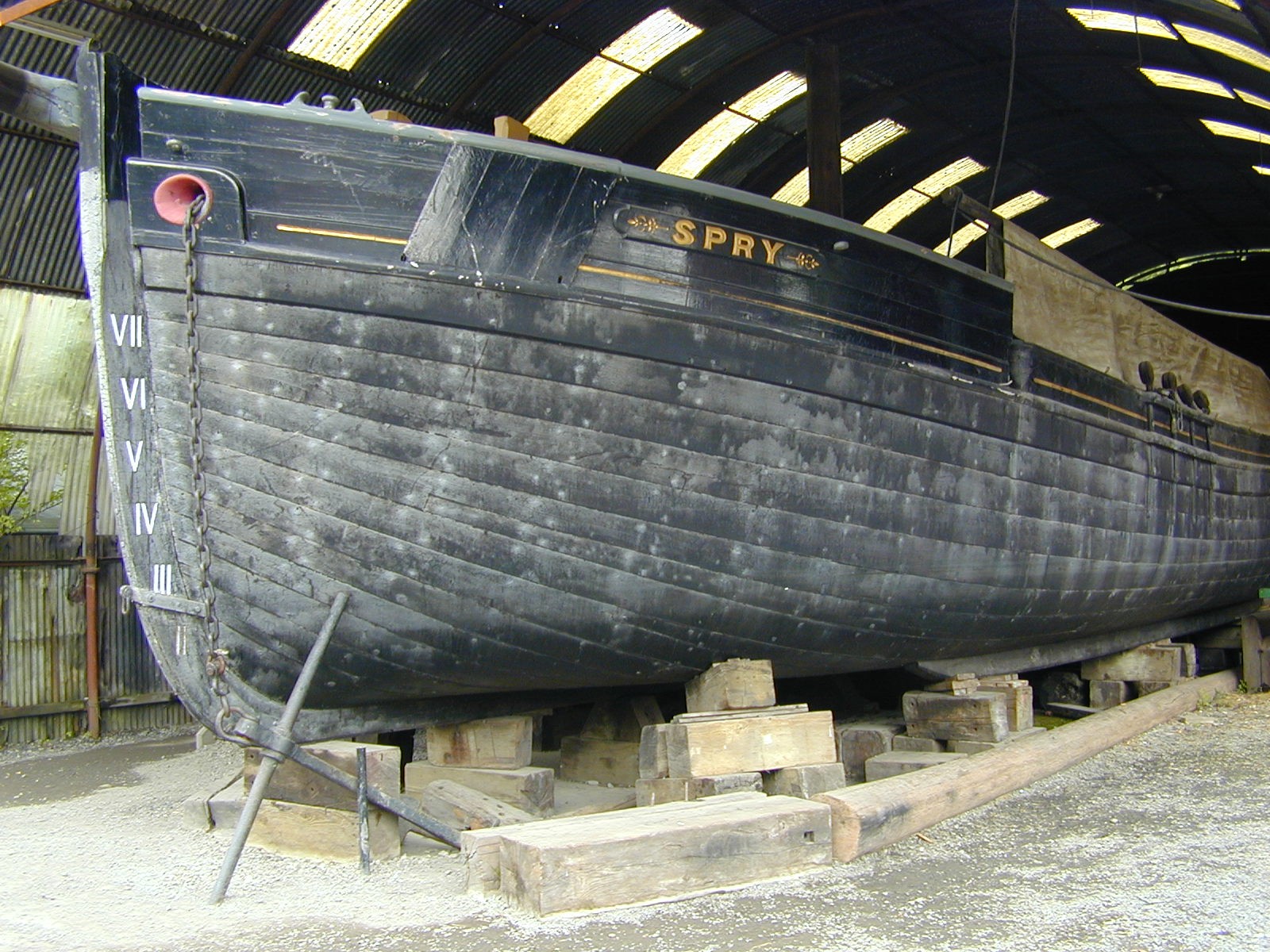

This rebuild was finished in 1992, and SPRY was placed on a lowloader and taken to Bristol for the International Festival of the Sea in 1996, where she sailed again for the first time in sixty years. Afterwards she sailed to Gloucester to be displayed at the National Waterways Museum before returning to the Blists Hill site of the Ironbridge Gorge Museums, Madeley, near Telford. There she is displayed under cover in a dry berth.

Source: Paul Brown, Historic Sail, The History Press.

Key dates

  • 1894

    SPRY is built

  • 1913

    it is thought that SPRY is converted to a ketch and used to carry sand for a glass bottle factory in Bristol

  • 1930s

    SPRY becomes a ‘dumb barge’, hauled along by a tug

  • 1950s

    SPRY is towed into Diglis Basin, Worcester, where she is used as a workshop

  • 1970s

    SPRY is discovered rotting in Diglis Basin in Worcester

  • 1983

    SPRY is moved by road to Blists Hill where she is rebuilt by the shipwright Alan Williams and his lieutenant, Paul Turner

  • 1996

    SPRY is taken to Bristol and successfully sailed

  • 1998

    SPRY returns to Blists Hill, where she goes on display

Grants

  • 1984

    The National Heritage Memorial Fund awarded £40,000 for restoration works

Sources

Brouwer, Norman J, International Register of Historic Ships, Anthony Nelson, Edition 2, 1993
Sullivan, Dick, Old Ships, Boats and Maritime Museums, Coracle Books, 1978
Johnson, C S, Spry Sails Again
Johnson, C S, The Rebuilding of the Severn Trow Spry
Classic Boat: Spry: High and Dry, August 1996
Yachting Monthly: Spry for her age, August 1997
